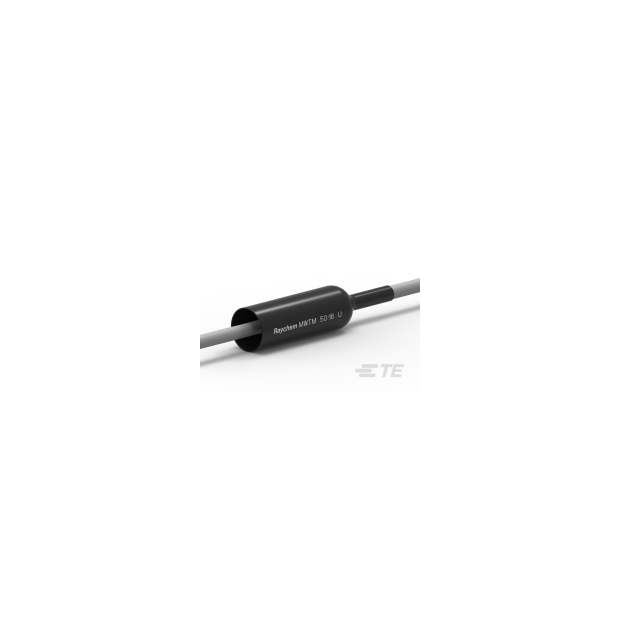

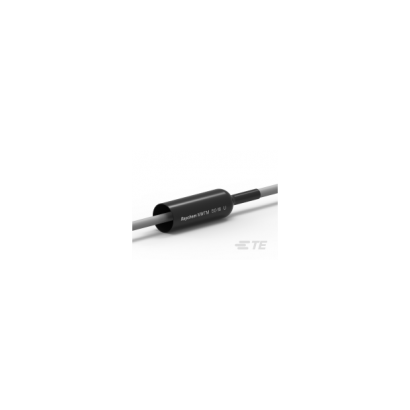

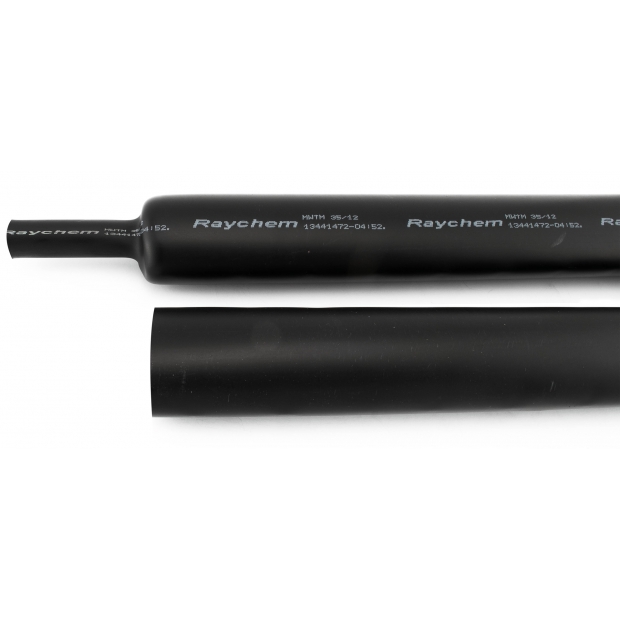

MWTM (600V) 低壓熱縮套管

MWTM套管有分含膠型及非含膠型二種,含膠型套管內加—層特殊的熱融膠,當套管熱縮時，熱融膠立即融化而流向四周，達到完全密封效果。可以黏著於大多數的電纜表皮上，包括PVC,XLPE,Neoprene, Polyolefin, EPR ·以及鉛、鋁、鋼等金屬表皮上，達到密封丶防潮及防塵之要求。
選型表

PRODUCT SELECTION INFORMATION - DIMENSIONS ARE SHOWN IN INCHES (MM)
Description	Cable Use Range (min. - max.)	Min. Cont. Length	Cut - Piece Length	Standard Pack (per box)	Standard Pack (spool)	Standard Pack (bulk)
Sealant-coated, Cut Lenght Tubing
MWTM- 10/3-1200-S	0.13 - 0.35 (3 - 9)	-	48 (1200)	25	-	-
MWTM- 16/5-1200-S	0.25 - 0.55 (6 - 14)	-	48 (1200)	25	-	-
MWTM- 25/8-1200-S	0.35 - 0.85 ( - 22)	-	48 (1200)	25	-	-
MWTM- 35/12-1200-S	0.50 - 1.25 (13 - 32)	-	48 (1200)	25	-	-
MWTM- 50/16-1200-S	0.65 - 1.70 (17 - 43)	-	48 (1200)	15	-	-
MWTM- 85/25-1200-S	1.00 - 2.90 (25 - 74)	-	48 (1200)	5	-	-
MWTM- 115/34-1200-S	1.40 - 3.90 (36 - 99)	-	48 (1200)	5	-	-
MWTM- 140/42-1200-S	1.80 - 4.70 (46 - 119)	-	48 (1200)	5	-	-
Uncoted, Spooled Tubing
MWTM-10/3-A/U	0.13 - 0.35 (3 - 9)	25 (7.6)	-	-	100 (30)	-
MWTM-16/5-A/U	0.25 - 0.55 (6 - 14)	25 (7.6)	-	-	100 (30)	1155 (350)
MWTM-25/8-A/U	0.35 - 0.85 ( - 22)	27 (7.6)	-	-	100 (30)	660 (200)
MWTM-35/12-A/U	0.50 - 1.25 (13 - 32)	28 (7.6)	-	-	100 (30)	495 (150)
MWTM-50/16-A/U	0.65 - 1.70 (17 - 43)	15 (4.6)	-	-	75 (23)	330 (100)
MWTM-85/25-1500/U	1.00 - 2.90 (25 - 74)	60 (1500)	-	5	-	-
MWTM-115/34-1500/U	1.40 - 3.90 (36 - 99)	60 (1500)	-	5	-	-
MWTM-140/42-1500/U	1.80 - 4.70 (46 - 119)	60 (1500)	-	5	-	-

瑞侃電力絕緣產品
